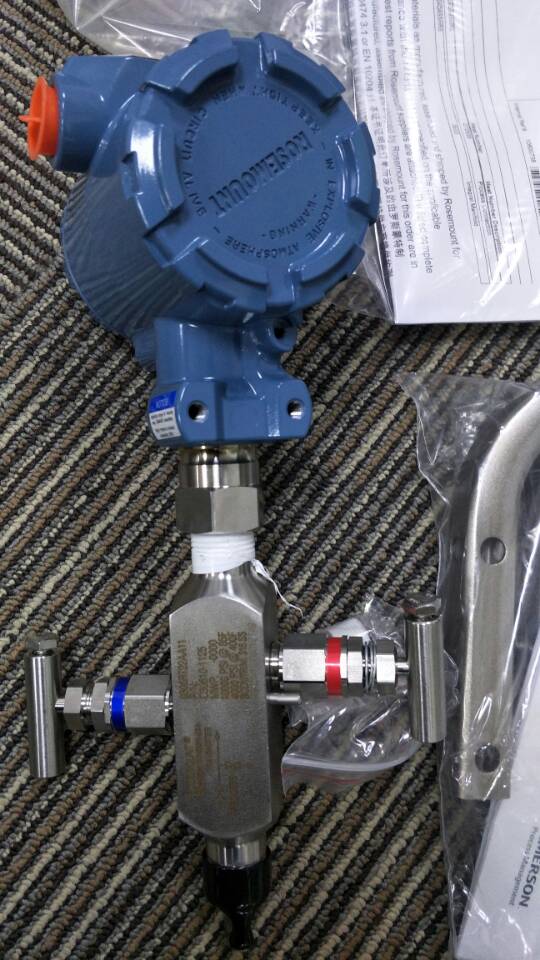

Rosemoun 2088 Absolute and Gage Pressure Transmitter
- Product Model：Rosemoun 2088
- Country of origin：Sinapore
- Delivery time：6-8 weeks
- Weight：6Kg
- Product Description: We have competitive price and sepecial discount on Yokogawa.Pls feel free to send us inquiry to confirm that.
Product introduction
Rosemoun 2088 Absolute and Gage Pressure Transmitter
Overview
Overview
Rosemoun 2088 Absolute and Gage Pressure Transmitter
Performance specifications
Performance specifications
For zero-based spans, reference conditions, silicone oil fill,
316L SST isolating diaphragm
Rosemoun 2088 Absolute and Gage Pressure Transmitter
Rosemoun 2088 Absolute and Gage Pressure Transmitter
Output
Code S: 4–20 mA
Code N: 1–5 Vdc, Low Power
Outputs are directly proportional to the input pressure
Selectable HART
Digital communications based on HART Revision 5 (default) or
Revision 7 (option code HR7) protocol can be selected. The HART
revision can be switched in the field using any HART based
configuration tool or the optional local operator interface (LOI).
Service
Liquid, gas, and vapor applications
Power supply
External power supply required. Transmitter operates on
10.5–42.4 Vdc with no load (5.8-28 V for Low Power). Reverse
polarity protection is standard.
Load limitations
Reverse polarity protection is standard. Maximum loop resistance
is determined by the power supply voltage as described by the
following equations:
Rosemoun 2088 Absolute and Gage Pressure Transmitter
Rosemoun 2088 Absolute and Gage Pressure Transmitter
Indication
Optional two-line LOI/LCD display
Zero and span adjustment requirements
Zero and span values can be set anywhere within the range limits
stated in Table 2. Span must be greater than or equal to the
minimum span stated in Table 2.
LOI
The LOI utilizes a two-button menu with internal and external
configuration buttons. Internal buttons are always configured for
LOI. External buttons can be configured for either LOI, (option code
M4), analog zero and span (option code D4) or digital zero trim
(option code DZ) for LOI configuration menu.
Current draw
Output code N: ≤ 3 mA
Overpressure limits
Range 1: 120 psig max
All other ranges: two times the URL
Burst pressure
11,000 psi for all ranges
Rosemoun 2088 Absolute and Gage Pressure Transmitter
Rosemoun 2088 Absolute and Gage Pressure Transmitter
