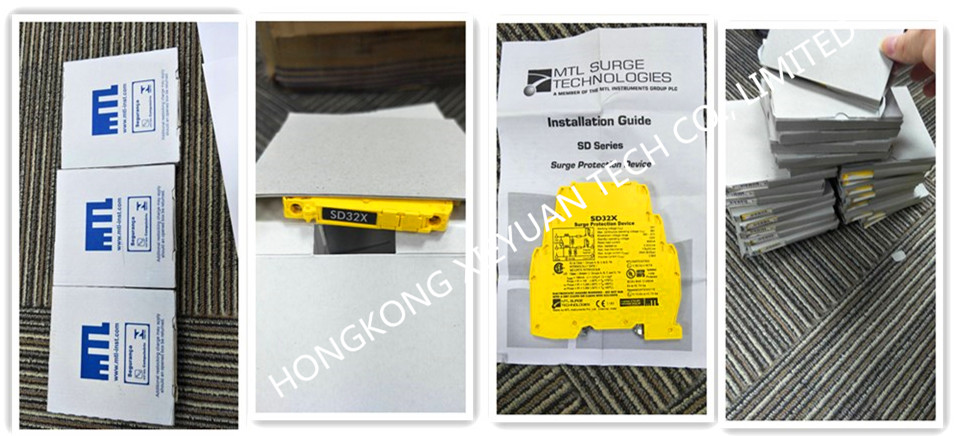

MTL Surge Protector SD32X large quantity arrived
Product Overview
The SD32X is a Surge Protective Device, ultra-slim user-friendly device for protecting electronic equipment and systems against surges on signal and I/O cabling and the SLP Series provides 20kA power surge protection for process control, equipment systems and distribution panels. Designed for high bandwidth, low resistance applications RTD, public switch telephone network (PSTN) and 3-wire transmitter versions available in SD series.
LED status indicator
Thermal and short circuit protection
18kA surge protection and RFI filtering
-40 to 80°C Operating temperature
Applications
MTL Surge Protector SD32X large quantity arrived
Applications
Power Management, Industrial
MTL Surge Protector SD32X large quantity arrived
Technical Specifications
Physical
Mount DIN Rail
Technical
Clamping Voltage 32 V
Leakage Current 5 µA
Max Forward Surge Current (Ifsm) 400 mA
Max Operating Temperature 75 °C
Max Surge Current 10 kA
Min Operating Temperature -30 °C
Output Current 400 mA
Resistance 2.2 Ω
Response Time 10 ns
Voltage Rating 32 V
Voltage Rating (DC) 32 V
Dimensions
Depth 109.6 mm
Height 99 mm
Length 7 mm
Width 7 mm
Compliance
REACH SVHC No SVHC
RoHS Non-Compliant
MTL Surge Protector SD32X large quantity arrived
Models
SD07
SD16
SD32
SD55
SD07R
SD16R
SD32R
SD55R
SD07X
SD16X
SD32X
SD55X
SD32T3
SD07R3
SD16R3
SD32R3
SD55R3
SDRTD
SDPSTN
SD150X
SD275X
