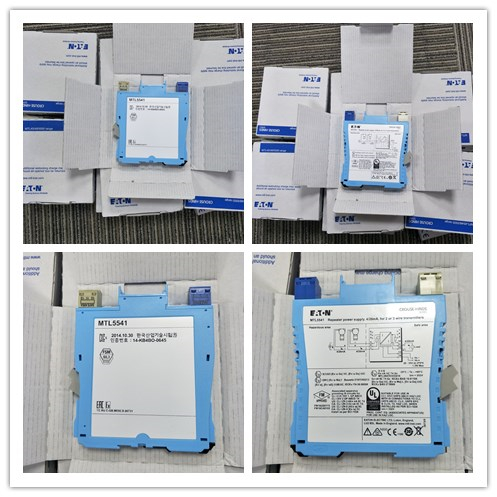

Large quantity of MTL5541 REPEATER POWER SUPPLY arrived!
Large quantity of MTL5541 REPEATER POWER SUPPLY arrived!
The MTLx541 provides a fully-floating dc supply for energising a conventional 2- or 3-wire 4/20mA transmitter, which is located in a
hazardous area, and repeats the current in another floating circuit to drive a safe-area load. For HART 2-wire transmitters, the unit allows bi-directional communications signals superimposed on the 4/20mA loop current. Alternatively, the MTLx541S acts as a current sink for a safe-area connection rather than driving a current into the load.Separately powered current sources, such as 4-wire transmitters, can be connected but will not support HART communication.
Large quantity of MTL5541 REPEATER POWER SUPPLY arrived!
SPECIFICATION
See also common specification
Number of channels
One
Location of transmitter
Zone 0, IIC, T4–6 hazardous area if suitably certified
Div. 1, Group A hazardous location
Safe-area output
Signal range: 4 to 20mA
Under/over-range: 0 to 24mA
Safe-area load resistance (MTLx541)
24mA: 0 to 360Ω
20mA: 0 to 450Ω
Large quantity of MTL5541 REPEATER POWER SUPPLY arrived!
Safe-area load (MTLx541S)
Current sink: 600Ω max.
Maximum voltage source: 24V dc
Safe-area circuit output resistance: > 1MΩ
Safe-area circuit ripple
< 50µA peak-to-peak
Hazardous-area input
Signal range: 0 to 24mA (including over-range)
Transmitter voltage: 16.5V at 20mA
Transfer accuracy at 20°C
Better than 15µA
Temperature drift
< 0.8µA/°C
Response time
Settles to within 10% of final value within 50µs
Communications supported
HART (terminals 1 & 2 only)
Large quantity of MTL5541 REPEATER POWER SUPPLY arrived!
Other MTL Model code as our normal stock
MTL5531
MTL5582
MTL5541
MTL4541
MTL5544D
MTL5575
MTL5516C
MTL5546Y
MTLIOP32
MTLIOP32D
