Temperature transmitters and sensors converting industrial process temperature signals to analog, bus or digital communication.
We combine our transmitters with sensors from our strategic sensor partners around the world, to offer you a complete, one-stop integrated solution which starts at your temperature measurement point. Explore the devices below.
PR electronics 6331A 2-wire programmable transmitter
RTD, TC, Ohm, or mV input
Extremely high measurement accuracy
Galvanic isolation
Programmable sensor error value
1- or 2-channel version
PR electronics 6331B 2-wire programmable transmitter
RTD, TC, Ohm, or mV input
Extremely high measurement accuracy
Galvanic isolation
Can be installed in Ex zone 0
1- or 2-channel version
PR electronics 6333A 2-wire programmable transmitter
RTD or Ohm input
High measurement accuracy
3-wire connection
Programmable sensor error value
1- or 2-channel version
PR electronics 6333B 2-wire programmable transmitter
RTD or Ohm input
High measurement accuracy
3-wire connection
Can be installed in Ex zone 0
1- or 2-channel version
PR electronics 6334A 2-wire programmable transmitter
TC input
High measurement accuracy
Galvanic isolation
Programmable sensor error value
1- or 2-channel version
PR electronics 6334B 2-wire programmable transmitter
TC input
High measurement accuracy
Galvanic isolation
Can be installed in Ex zone 0
1- or 2-channel version
PR electronics 6335A 2-wire HART transmitter
RTD, TC, Ohm, or mV input
Extremely high measurement accuracy
HART 5 protocol
Galvanic isolation
1- or 2-channel version
PR electronics 6335D 2-wire HART transmitter
RTD, TC, Ohm, or mV input
Extremely high measurement accuracy
HART 5 protocol
Can be installed in Ex zone 0
1- or 2-channel version
PR electronics 6337A 2-wire HART transmitter
1- or 2-channel converter for RTD, TC, Ohm, and bipolar mV signals
2 analogue inputs and 5 device variables with status available
HART protocol revision selectable from HART 5 or HART 7
Hardware assessed for use in SIL applications
Mounting on a DIN rail in Safe Area or Zone 2/22
PR electronics 6337D 2-wire HART transmitter
1- or 2-channel converter for RTD, TC, Ohm, and bipolar mV signals
2 analog inputs and 5 device variables with status available
HART protocol revision selectable from HART 5 or HART 7
Hardware assessed for use in SIL applications
Mounting on a DIN rail in hazardous gas and dust area
PR electronics 6350A Profibus PA / Foundation Fieldbus transmitter
PROFIBUS PA ver. 3.0
FOUNDATION Fieldbus ver. ITK 4.6
Automatic switch between protocols
Basic or LAS capability with F.F.
1- or 2-channel version
PR electronics 6350B Profibus PA / Foundation Fieldbus transmitter
PROFIBUS PA ver. 3.0
FOUNDATION Fieldbus ver. ITK 4.6
Automatic switch between protocols
FISCO-certified
Basic or LAS capability with F.F.
PR electronics 9113A Temperature / mA converter
Input for RTD, TC and mA
Active / passive mA output via the same two terminals
1 or 2 channels
Can be supplied separately or installed on power rail, PR type 9400
SIL 2-certified via Full Assessment
PR electronics 7400 Pt100 temperature sensor
Accuracy, IEC 60751 class A
Terminal head DIN 43729 form B
1/2” RG connection
Stainless, acid-proof steel
Protection tube Ø 9 x 1
Temperature range -50°C to +400°C

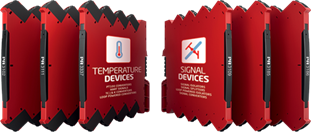

Latest temperature devices:
New 7501 Field mounted HART temperature transmitter with display and optical buttons
3000 series: High performance temperature transmitters and converters
Extremely fast response time + high accuracy + low temperature drift.
Have a temperature probe which is either a thermocouple or RTD type?
The PR 4114, 4116, 4131, 5116, 5335, 3331 and 3337 can measure both of these temperature probe types.
PR electronics offers you a five-year warranty on all devices.
